Holms eSL

Holms eSL – Prototype

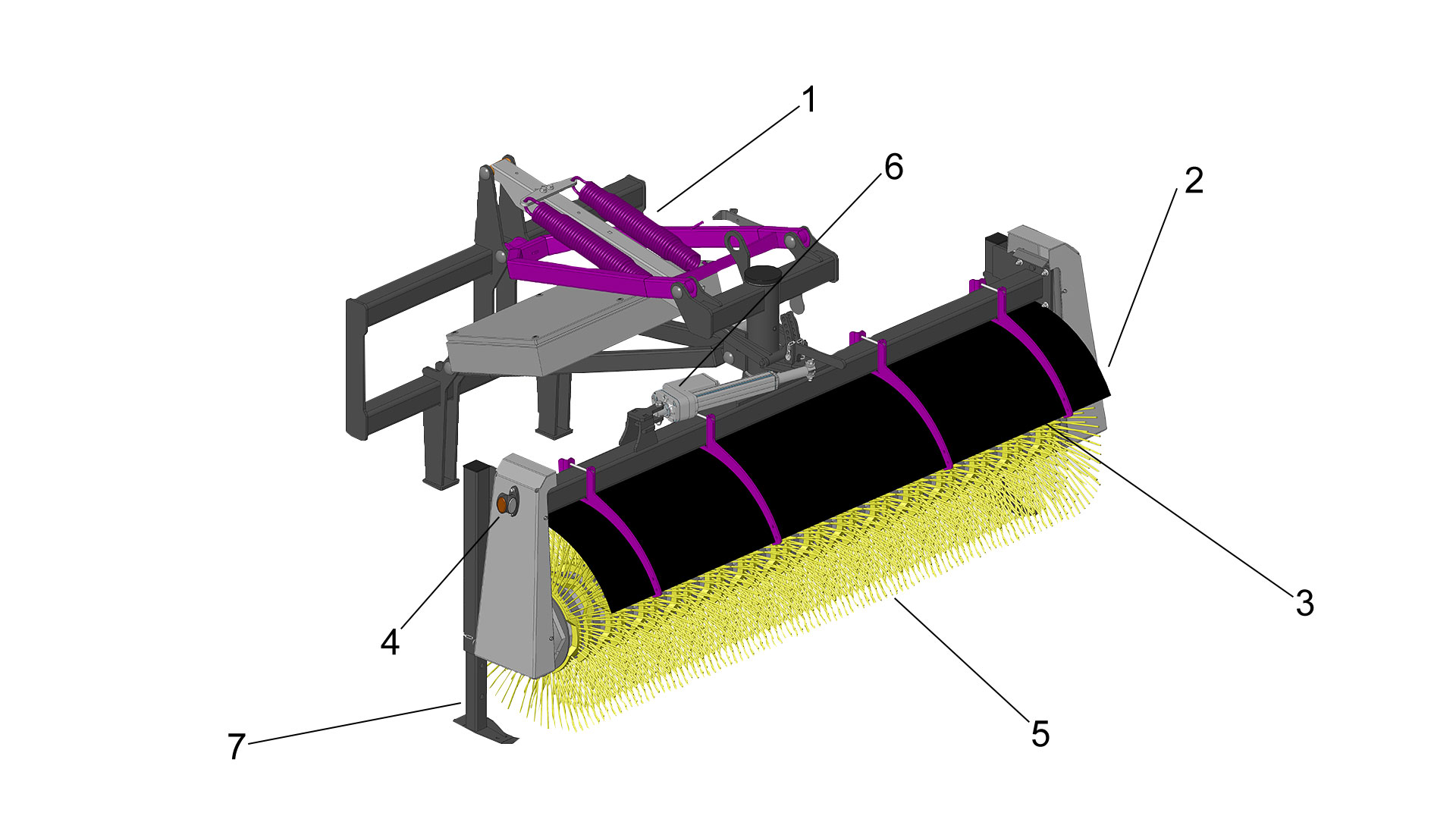

Holms eSL is our Holms Angle Sweeper SL but electric



  1. SAS, Self Adjusting Suspension
    Correct ground pressure with minial adjustments. Follows the slopes and irregularities of the ground
  2. Electric motor
  3. Splash guard
  4. Led lighting
  5. Two different brush cores. Swish (optional) or Beeline Ring brush (Standard).
    The attachment in the picture is equipped with Beeline.
  6. Electric linear device for turning
  7. Parking support

Proposed Technical Specification

ModelSL200SL220SL250SL280
Working width200 cm220 cm250 cm280 cm
Max width220 cm240 cm270 cm300 cm
Fullt svängd 30°170 cm190 cm220 cm240 cm
Weight, excl. bracket390 kg410 kg430 kg450 kg
Weight, excl. bracket, w/ full w.tank 106 / 159 US gal952 kg / 1196 kg972 kg / 1216 kg1002 kg / 1236 kg1022 kg / 1256 kg
Brush diameter700 mm700 mm700 mm700 mm
Recommended oil flow l/min40/13040/13040/13040/130
ModelSL200SL220SL250SL280
Working width6'7"7'3"8'2"9'2"
Working width, fully angled/ 30 °5'7"6'3"7'3"7'10"
Weight, standard design859 lb903 lb947 lb992 lb
Weight, excl. bracket, w/ full w.tank 106 2099 lb 2143 lb 2209 lb 2253 lb
Brush diameter28"28"28"28"

Holms eSL Electric Sweeper

+30 % machine battery runtime

Holms eSL - A part of the solution

 PROTOTYPE

The Holms eSL Electric Sweeper is being developed for the electric equipment needs
of the near future. Holms eSL Electric Sweeper will optimize the working time of your electric machine so you can complete more tasks between charging periods.

Proof of Concept - The numbers; Machine and sweeper types

Diesel power and hydraulic sweeper

Needed power of sweeper: 4kW / 5.4hp

Efficiency transfer of hydraulic system is 50 %
Needed power on hydraulic pump: 8kW / 10.9hp

Efficiency transfer of diesel engine is 40%, needed power in the diesel: 20kW / 27hp

Diesel additional consumption w sweepers .52gal/hr

US Cost for diesel $5.00

US Cost wth sweeper $2.60/h

1 gal diesel equals 22.38 pounds CO2

Emissions: 11.64 pounds/hr CO2

Electric power and hydraulic sweeper

Needed power of sweeper: 4kW / 5.4hp

Efficiency transfer of hydraulic system is 50 %, needed power on hydraulic pump: 8kW / 10.9 hp

Efficiency in electric systems is 98 %, needed power from the batteries: 8,2kW / 11.1 hp

US Cost for electric energy: $0.17/kWh

US Cost: 8,2 kWh x $0.17/kWh = $1.40/h

Emissions: Zero emission

Advantages:
Lower operating cost,
Emissions: Zero emission

Electric power and Holms eSL sweeper

Needed power of sweeper: 4kW / 5.4hp

Efficiency in electric systems is 98 %, needed power from the batteries: 4,1kW (50% lower)

US Cost for electric energy: $0.17/kWh

US Cost: 4.1kWh $0.17/kWh = $0.70/h

Emissions: Zero emission



Advantages:
Furter operating cost reduction;
Emissions: Zero emission

Preparing for tomorrow´s demands now.

Complete electromobility solutions for the equipment industry are the goal

Equipment users worldwide are evaluating electric powered machines and employing them in applications where the greatest benefits are realized.
Holm´s developement of an electric sweeper is driven by the need to extend battery life on the carrier machines themselves to
support the working hours desired by equipment users.

- Electrification of equipment is more than a trend and as the technology find its way beyond the early adopter stage
customers will need compatible attachment solutions,
says Dan Snedecor, President at Holms Attachments, INC.

The Holms eSL220 Angle Sweeper will be part of Volvo Construction Equipment´s electromobility exhibit confirming the joint commitment to providing complete electrified solutions to the market. The Holms concept sweeper that will be on display is a working prototype that has been tested and evaluated over the last 12 months by the developement apartement at Holms Attachments.

- Converting electric power to traditional hydraulic power, used by today´s attachments, results in large losses.
Using electric power provided by the carrier machine increases overall working time due to a more efficient use of the available power.
Our eSL220 Angle Sweeper provides longer working times that a traditional hydraulic powered sweeper,
says Ulf Osterberg, Director of product design at Holms Attachments AB.

- Our focus is to be prepared, along with our partners. to provide innovative products that support lower emissions and are of the highest quality, says Carl Gindahl, CEO of Holms Attachments.
